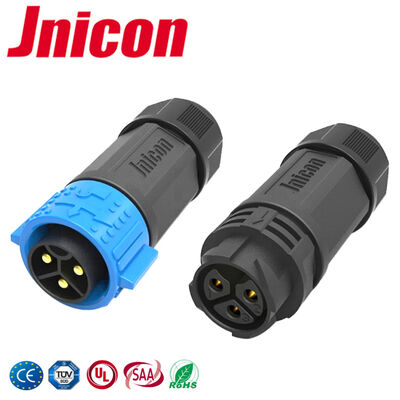

TUV Plastic 3Pin Outdoor Waterproof Connectors , M25 Ip68 Waterproof Power Cable Connector
Description:
- Create waterproof connections easily
- Great for any outdoor configuration.
- 3-Pin for 3 Wires
- Fully Waterproof Design
- IP67 Rating
- No Soldering required.
| Operation Parameters |
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 6.0mm2 |
| Electrical Parameters |
| Number of Poles |
3 |
| Current Rating |
50A max |
| Voltage Rating |
600VAC max |
| Durability Voltage |
2500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone
|
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Jnicon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Jnicon people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001,ISO14001.
6. Q: Can you give me some advices on how to buy the Led wire waterproof connector ?
A: It's my pleasure to help you first of all.If you are interested in our products,The best way is that you can make a simple drawing to me with a product picture,Then I will give advice for you.If you have any inquiry,please feel free to ask us and we'll try our best to help you!
7. Q: What if I need the products have some differences on specification from yours?
A: Any requirement from customers will be considered since we stick customer service to the centre.The products you looking for can be customized by our professional R&D team.What's more,it's honored for us to offer you samples. By the way,samples will be free of charge while you bear the freight.
8. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
9. Q: Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
10. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
