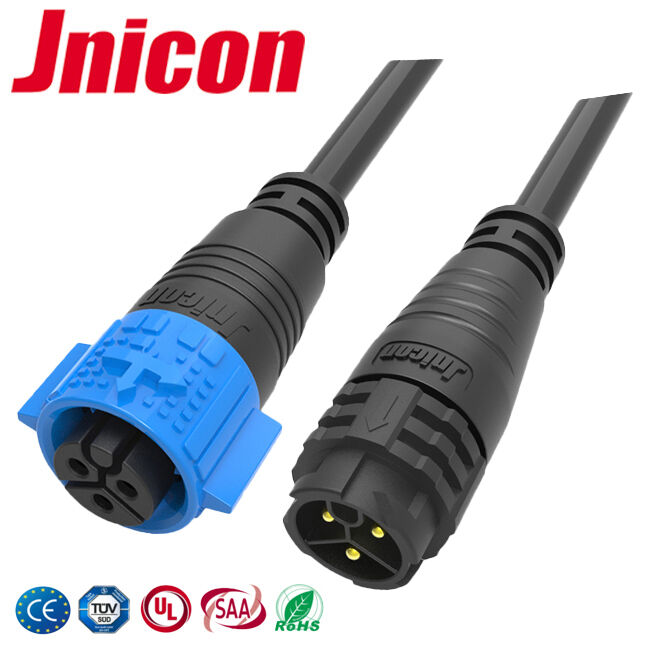

3 Pin Male Female Gender Waterproof Connector Overmolded With Cable IP67
Details For M19 waterproof cable connector
1) Color: black, yellow, blue available.
2) Push locking connection mode
3) Contact pin: Screw terminal and soldering terminal available
4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board
5) Colours:Black,blue,white and yellow color supported
6) Cable length:Different cable length could be customized
M19 overmolded cable connector is high performance waterproof connector, good material and nice waterproof feature to let your applications more safe and easy to install, it's a very popular model in Europe, Amercian, South Asia area.
Technical information
| Specifications: |
| Connection way: |
Push locking overmolded cable connector |
| Core number: |
3 pin,4 pin,5pin and multipin optional |
| Connector type : |
Male female connector |
| Connector color: |
Black, blue, yellow |
| Waterproof level: |
IP67 |
| Cable specification: |
18AWG-12AWG |
| Cable diameter range: |
4.5mm-11mm |
| Rated current (A): |
20A |
| Operating voltage (AC.V.rms): |
500V |
| Withstand voltage (AC.V)1min: |
1500V |
| Contact resistance: |
<5mΩ |
| Insulation resistance: |
>500MΩ |
| Durability: |
≥3000 mating and unmating cycles |
| Temperature rating: |
-40°C~105°C |
| Connecting mode: |
Solder type |
| Flame-resistance: |
UL94-V0 |
| Material: |
| Shell and insulated parts: |
High performance engineering plastics |
| Contact pin: |
Copper alloy(gold-plated) |
| Spring: |
Stainless steel |
| Sealing: |
Silica gel |
| Main characteristics: |
| Sealed against dust and fluid (IP67) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover available |
ip67 cable connector is widely used in video transmission, transformer and network signal transmission equipment in the market; also in communication field, outdoor display screen, home network port, signal transmitting and receiving equipment, 4G network field, etc
| Application industries: |
| Stage equipment |
The smart grid |
LED lighting |
| Medical equipment |
Battery |
Automation |
| Solar energy equipment |
Ship equipment |
Agriculture |
IP67 connector's benefits:
1. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
2. With environmental protection material:high performance engineer plastic is good for environmental protection.
