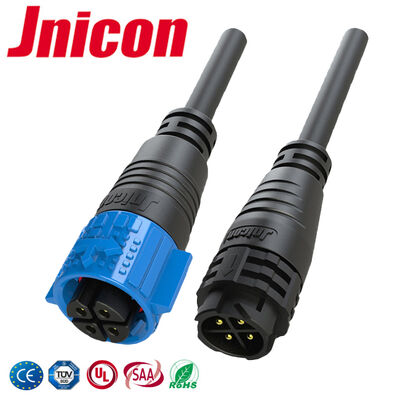

Name: M19 4Pin 20A Push Pull Cable Connectors ODM Waterproof Wire To Wire Power Connector
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

Aperçu Produits Connecteurs imperméables de fil

M19 4Pin 20A Push Pull Cable Connectors ODM Waterproof Wire To Wire Power Connector

Détails sur le produit:

Lieu d'origine:	Shenzhen Chine
Nom de marque:	Jnicon
Certification:	UL,TUV,CE,ROHS,CQC
Numéro de modèle:	M19

Conditions de paiement et expédition:

Quantité de commande min:	100 (10 paires d'échantillons)
Prix:	negotiable
Détails d'emballage:	1. Sac en plastique ; 2. Carton ; 3. Selon les exigences du client
Délai de livraison:	3-5 jours ouvrables
Conditions de paiement:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement:	10000/days

Contact

Description de produit détaillée

Nom du produit:	Connecteur étanche M19 push pull	Fonction:	Conductivité électrique
Courant nominal:	20A/300V	Spécifications du câble:	16-12AWG
Niveau d'étanchéité:	IP67	Matériau du boîtier:	Plastiques ignifuges
Mettre en évidence:	M19 waterproof wire connector , 4Pin 20A push pull connector , ODM waterproof power connector

Push Pull IP67 Waterproof Connector With 4 Pin Male Female Plug Connector

Features to 4 pin waterproof connector

Push pull locking connection mode
Protection level: IP67
Connection method: soldering(welding),screw terminal
Assembly: male plug with female plug
Certification: UL,TUV,RoHS,CQC,CE
Function : power extension
Color: black, yellow, blue.

M19 4 pin waterproof male female connector could be well used for LED lighting, power extension,Audio video, elctrical equipments, automation machines,robot, ebike, motor etc.

M19 4 pin connector specification

Specifications:
Connecting mode:	Push pull locking waterproof connector
Core number:	4 pin
Connector type :	Assembly Panel mount connector
Connector color:	Black, blue, yellow
Waterproof level:	IP67
Cable specification:	20AWG-12AWG
Cable diameter range:	4.5mm-11mm
Contact diameter*No.	Φ1.0-Φ2.4
Rated current (A):	20A
Operating voltage (AC.V.rms):	500V
Withstand voltage (AC.V)1min:	1500V

Application industries:
Stage equipment	The smart grid	LED lighting
Medical equipment	Battery	Automation
Solar energy equipment	Ship equipment	Agriculture

4 pin waterproof connector's benefits :

1. Great suitable for industrial power connection, LED fixtures, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, other places need waterproof power extension use.

2. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.

M19 4Pin 20A Push Pull Cable Connectors ODM Waterproof Wire To Wire Power Connector 0
