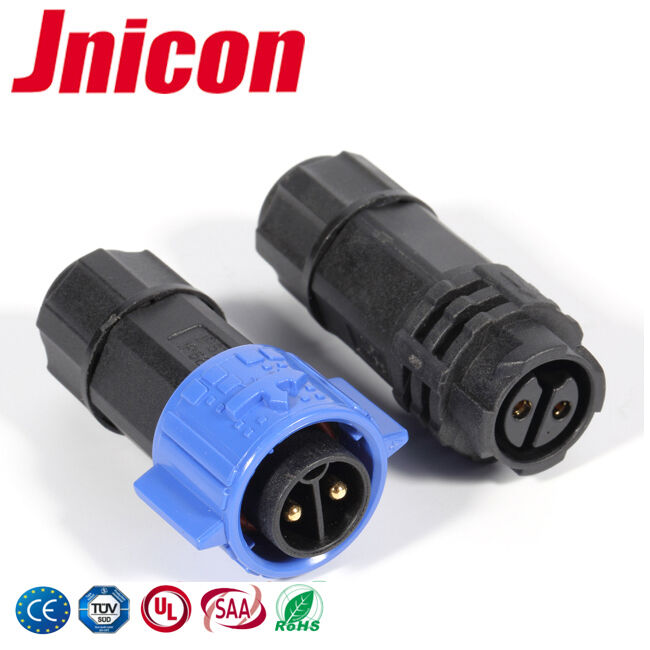

2P Waterproof Plug In Screw Terminal Blocks Connector ,M19 Plastic Connector
Product Features
1. 20Amps power connector
2. Push locking connection
3. Connection method: soldering(welding),screw terminal
4. Assembly: cable to cable /wire to wire,panel mount,male and female without cable,T shape.
5. Certification: UL,TUV,RoHS,CQC,CE
6. Golded plated
Connector Technical Spec
| Number of contacts |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9-28 |
| Rated current/voltage |
20A |
20A |
15A |
15A |
10A |
10A |
10A |
5A |
| Rated voltage |
300V |
300V |
300V |
300V |
300V |
125V |
125V |
60V |
| Cable gauge |
Max2.5mm²(12AWG) |
| Cable diameter |
∅12mm |
| Protection level |
IP67 |
| Operating temperature |
-45℃-105℃ |
| Connecting mode |
Self-lock Assembly type |
| Flammability |
UL94-V0 |
| Certification |
CE, TUV, UL, RoHs, CQC |
Main characteristics:
| Sealed against dust and fluid (IP67/IP68) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover available |
Product Application
1. Great suitable for Outdoor LED light, LED equipment, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.
2. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
3. With environmental protection material:high performance engineer plastic is good for environmental protection.
4. Screw terminal connector could be field installed, just need to screw the wire on it and tighted it, fast and easy.
